Our Manufacturing Services
Comprehensive precision manufacturing capabilities — from one-off prototypes to production runs of 10,000+ parts.
CNC Machining
Our 3-axis, 4-axis, and 5-axis CNC machining centers deliver exceptional precision for complex geometries. Every part is manufactured to your exact specifications with tolerances as tight as ±0.01mm.
Available Processes
- CNC Milling (3/4/5-axis)
- CNC Turning (lathe)
- Multi-axis mill-turn compound machining
- Drilling, tapping, boring, reaming
Surface Finishes
- As-machined (Ra 1.6–3.2 μm)
- Anodizing (Type II / Type III hard coat)
- Electroplating (Nickel, Chrome, Zinc)
- Passivation, sandblasting, polishing
- Powder coating, painting
Materials:
| Specification | Details |
|---|---|
| Tolerance | ±0.01mm (standard), ±0.005mm (precision) |
| Max Part Size | 1200 × 800 × 500 mm |
| Surface Roughness | Ra 0.8 – 6.3 μm |
| Lead Time | 5–10 business days (standard) |
| File Formats | STEP, IGES, DXF, DWG, STL |

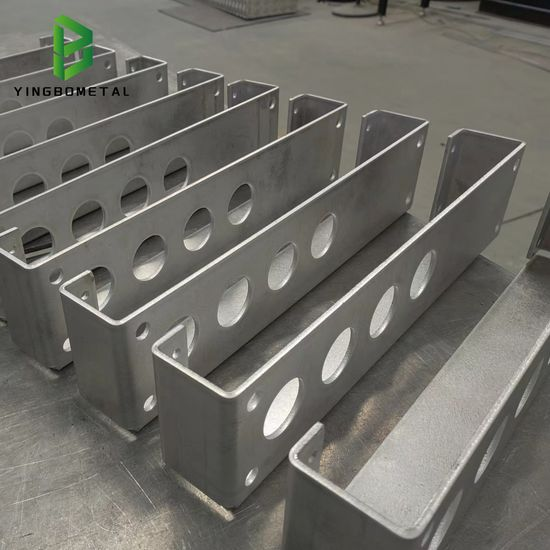

Sheet Metal Fabrication
Full-spectrum sheet metal services from laser cutting to final assembly. We produce enclosures, brackets, chassis, panels, and custom structural components with tight tolerances and clean finishes.
Fabrication Processes
- Fiber Laser Cutting (up to 20mm)
- CNC Press Brake Bending
- TIG / MIG / Spot Welding
- Riveting and hardware insertion
- Powder Coating, Anodizing, Plating
- Silk-screen printing, laser engraving
Materials:
| Specification | Details |
|---|---|
| Material Thickness | 0.5mm – 20mm |
| Max Cutting Area | 1500 × 3000 mm |
| Bending Length | Up to 3000 mm |
| Min Bend Radius | ≥ Material thickness |
| Lead Time | 7–12 days |

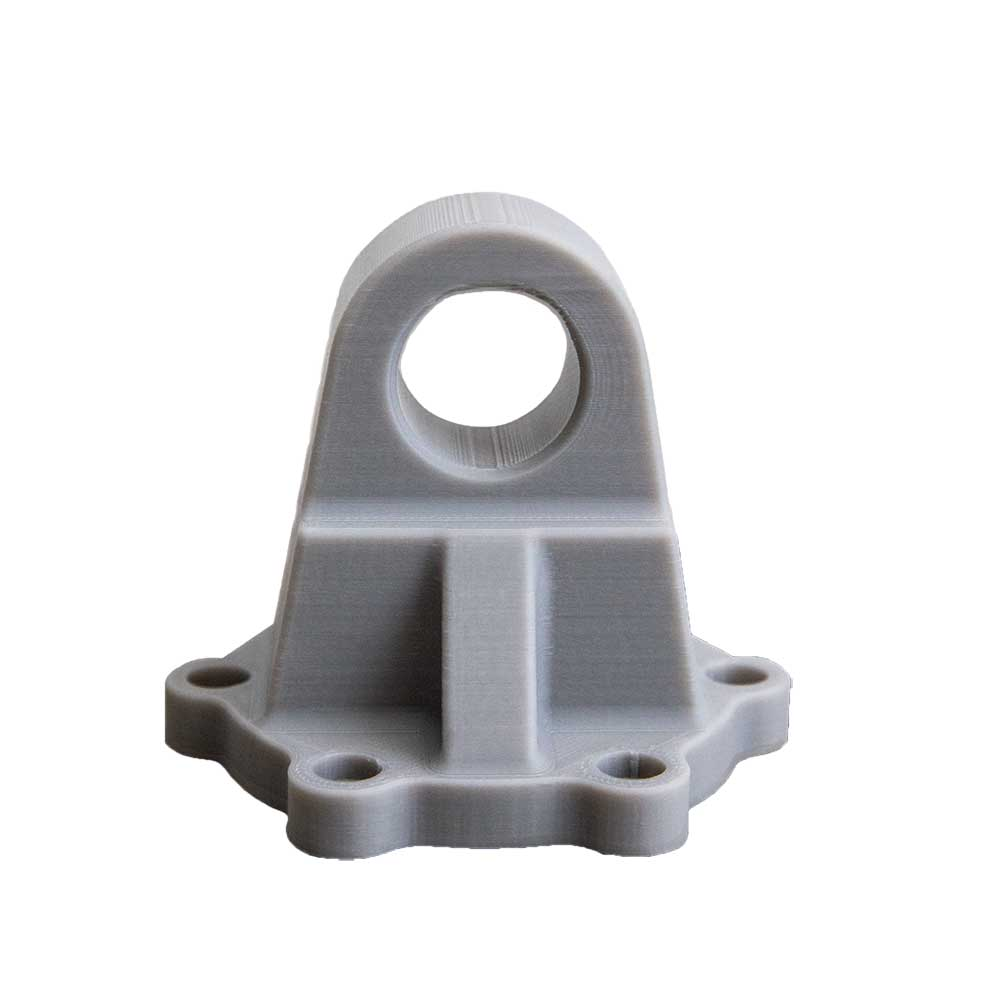

Rapid Prototyping
Accelerate your product development with functional prototypes delivered in 3–5 days. Choose the process that best fits your design requirements, material needs, and budget.
| Feature | CNC Prototype | 3D Printing (SLA/SLS) | Vacuum Casting |
|---|---|---|---|
| Best For | Functional testing, end-use materials | Complex geometry, visual models | Small batches (5–20 pcs), silicone molds |
| Materials | Metals & engineering plastics | Resin, Nylon (PA12), ABS-like | PU, Epoxy, Silicone (cast urethane) |
| Tolerance | ±0.01mm | ±0.1mm (SLA), ±0.3mm (SLS) | ±0.15mm |
| Surface Finish | Excellent (machined) | Good (post-processable) | Very good (mold surface transfer) |
| Lead Time | 3–5 days | 1–3 days | 5–7 days |
| Quantity | 1–50 pcs | 1–10 pcs | 5–50 pcs per mold |
Not sure which process to choose? Send us your design and our engineers will recommend the optimal approach based on your functional requirements and timeline.

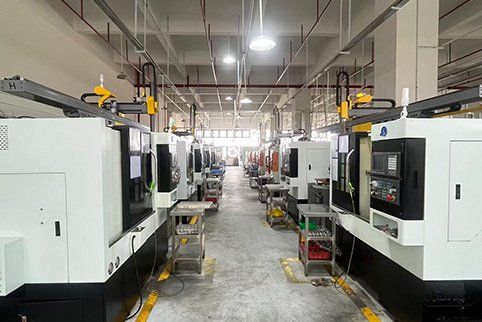

Request Prototyping QuoteLow-Volume Production
Bridge the gap between prototyping and mass production. Our low-volume manufacturing service supports runs from 50 to 10,000 pieces — ideal for pilot runs, market launches, bridge tooling, and make-to-order production.
Why Low-Volume with MachProBot?
- No minimum order for most processes
- Soft tooling and bridge tooling options
- Same quality controls as production runs
- Scalable from prototype to mass production
| Specification | Details |
|---|---|
| Quantity Range | 50 – 10,000 pcs |
| Lead Time | 10–20 business days |
| Processes | CNC, Sheet Metal, Casting, Molding |
Ready to Start Your Project?
Upload your design and get a detailed quote within 24 hours. No commitment required.
